Mini UPS vs Power Bank: What’s the Actual Difference?

Mini UPS (Uninterruptible Power Supply) and power banks are often mistaken for being essentially the same devices, with only differences in size or capacity. In reality, they are built for distinctly different purposes, with notable differences in design, functionality, and application scenarios. In this article, we’ll break down the key differences between the two to help you make an informed decision for your specific needs.

1. Core Feature Comparison

Feature	Mini UPS	Power Bank
Primary Purpose	Uninterrupted power backup	Temporary charging
Switch Time	≤10ms (instantaneous)	No auto-switching (manual)
Output Stability	Voltage regulation	Basic 5V/9V/12V output
Typical Loads	Routers, NAS, PCs	Phones, tablets

2. Key Differences Explained

(1) Instant Switchover: The UPS Advantage

Mini UPS:

Uses static switches for 0ms automatic cutover

Zero-crossing switching prevents voltage spikes

Power Bank:

No automatic switching (requires manual plugging)

Even with inverters, switch time >50ms (may reboot PCs)

(2) Load Compatibility

Device	Mini UPS	Power Bank	Risk Warning
Wi-Fi Router	√(ML1202AC)	❌ (needs adapter)	Unstable voltage
Laptop	√(MU68)	❌ (requires PD trigger)	May damage ports
NAS Storage	√(MU05)	❌	Sudden power loss risks data
Medical Devices	√(MU35)	❌	Voltage spikes are dangerous

2. Usage Scenarios

(1) When to Use Mini UPS

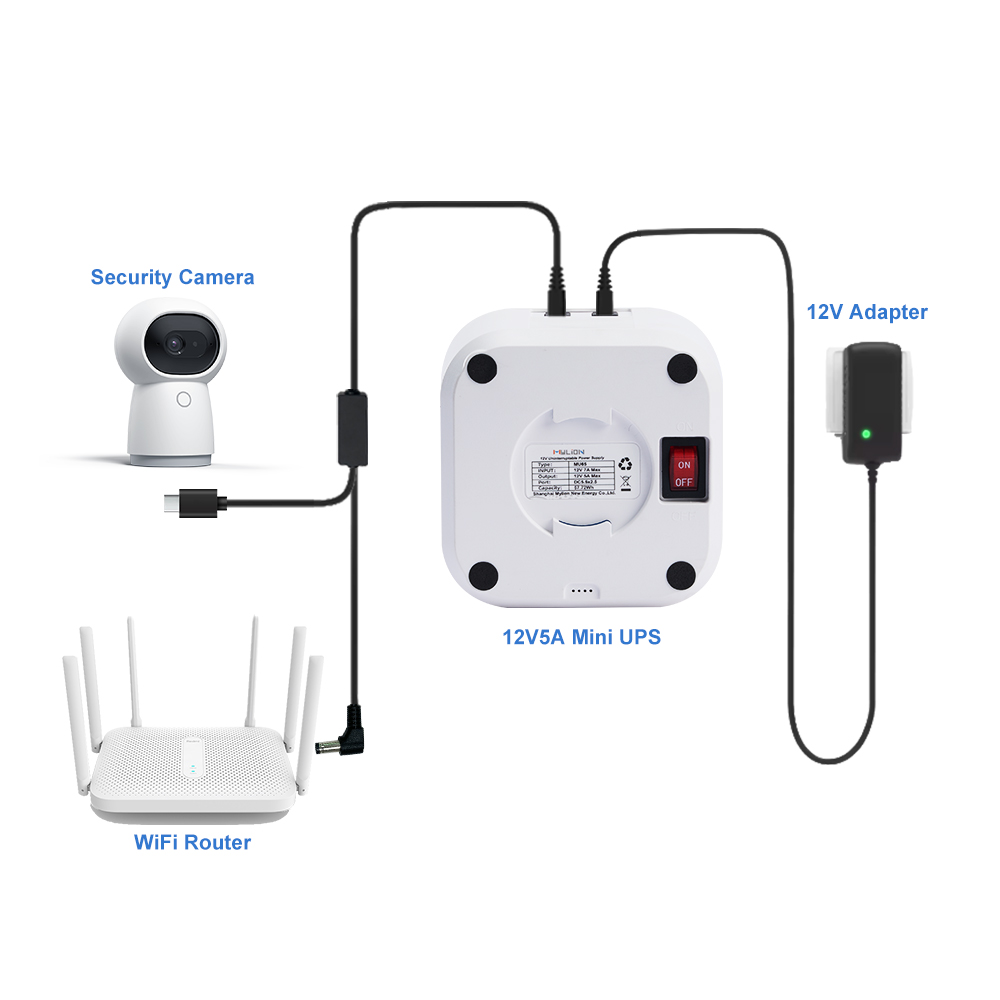

Network equipment (routers, modems)

NAS/servers (prevents HDD corruption)

Surveillance systems (continuous recording)

(2) When a Power Bank Suffices

Charging phones/tablets outdoors

Powering Bluetooth speakers temporarily

Emergency lighting

3. Common Myths Debunked

Q1: Can a power bank + inverter work as a Mini UPS?

Technically yes, but impractical:

Switch time >50ms

No voltage regulation (may harm devices)

Inverter efficiency drops to 80-90%

Q2: Why do some “power banks” claim Mini UPS functionality?

Marketing gimmicks:

Just add AC plugs (slow switching)

Basic voltage sensing (no fast response)

4. Buying Guide

(1) Choose Mini UPS If:

Protecting network/data equipment

Devices are voltage-sensitive

Unattended operation needed (e.g., smart home hub)

Top Picks:

MU68

1. Output power: 45Wh/12000mAh
2. Output current: Max 3A
3. Built-in smart chip and PCB: provide overcharge, over discharge, overload, short circuit, temperature protection and other functions to protect the battery.
4. Use Grade A certified and high-quality batteries.
5. Use ABS fireproof shell, safe and reliable.

MU35

1. Output power: 77.7Wh/21000mAh
2. Output current: Max 5A
3. Built-in smart chip and PCB: provide overcharge, over discharge, overload, short circuit, temperature protection and other functions to protect the battery.
4. 5A high current charging and discharging can meet the needs of more devices.
5. Use ABS fireproof shell, safe and reliable.



ML1202AC

1. Output power: 25.6Wh/8000mAh
2. Output current: Max 2A
3. Built-in AC input, no need to configure an additional charger, also known as a smart adapter, plugs are available in US/UK/Australian/European
4. Using lithium iron phosphate LiFePo4 battery cells, the number of cycles can reach more than 2000 times

With two output ports, you can connect more devices.

(2) Choose a Power Bank If:

Mobile charging only

Load <50W

Manual switching is acceptable

Conclusion

The fundamental difference:
Mini UPS = Power insurance (active protection)
Power bank = Power supplement (manual operation)
